FRB-BDM-I化工铠装金属接头产品的作用所选材质:H59、SS304、316表面层:镀镍、磨光密封垫件:硅聚氨酯、氯丁聚氨酯、铁氟龙、锦纶 PA6阻燃材料等级保护:VO(UL94)防护栏等级保护:IP68-10pa 负荷(扭紧零部件)区域溫度:动态图片-60℃至100C短暂120℃动态-20℃至80℃短暂 100℃

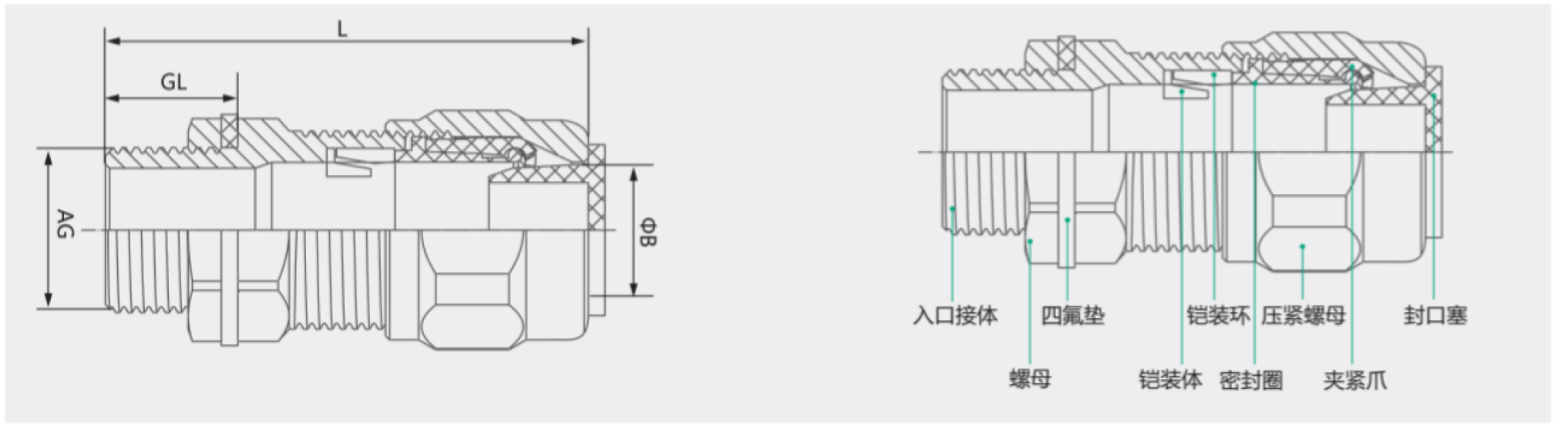

| 规格型号 | 螺纹尺寸 | 电缆外径范围 | 铠装/编织 | 最大长度H | 螺纹长度GL | 六角尺寸 |
| Spec. | 公制M | 美制NPT | 英制G | 外护套 | 内护套 | 1 | 2 | mm | mm | 对边 | 对角 |
| FRB.BDM-I.01 | M20*1.5 | NPT1/2 | G1/2 | 5-8 | 3-5 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 28 |
| FRB.BDM-I.02 | M20*1.5 | NPT1/2 | G1/2 | 6-10 | 4-8 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 28 |
| FRB.BDM-I.03 | M20*1.5 | NPT1/2 | G1/2 | 9-14 | 6-11 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 28 |
| FRB.BDM-I.04 | M20*1.5 | NPT1/2 | G1/2 | 13-18 | 9-14 | 0.9/1.25 | 0/0.7 | 32 | 15 | 30 | 35 |
| FRB.BDM-I.05 | M25*1.5 | NPT3/4、NPT1 | G3/4、G1 | 15-21 | 11-17 | 1.25/1.6 | 0/0.7 | 35 | 15 | 36 | 42 |
| FRB.BDM-I.06 | M25*1.5 | NPT3/4、NPT1 | G3/4、G1 | 17-24 | 13-20 | 1.25/1.6 | 0/0.7 | 35 | 15 | 40 | 47 |
| FRB.BDM-I.07 | M32*1.5 | NPT1、NPT1 1/4 | G1、G1 1/4 | 20-28 | 16-23 | 1.6/2.0 | 0.6/1.2 | 39 | 15 | 46 | 53 |
| FRB.BDM-I.08 | M32*1.5 | NPT1、NPT1 1/4 | G1、G1 1/4 | 23-32 | 18-26 | 1.6/2.0 | 0.6/1.2 | 39 | 15 | 46 | 53 |
| FRB.BDM-I.09 | M40*1.5 | NPT1 1/4、NPT1 1/2 | G1 1/4、G1 1/2 | 26-35 | 21-29 | 1.6/2.0 | 0.6/1.2 | 43 | 15 | 55 | 64 |
| FRB.BDM-I.10 | M40*1.5 | NPT1 1/4、NPT1 1/2 | G1 1/4、G1 1/2 | 31-38 | 25-32 | 1.6/2.0 | 0.6/1.2 | 43 | 15 | 55 | 64 |
| FRB.BDM-I.11 | M50*1.5 | NPT1 1/2、NPT2 | G1 1/2、G2 | 34-41 | 28-35 | 1.6/2.0 | 0.6/1.2 | 48 | 15 | 65 | 75 |
| FRB.BDM-I.12 | M50*1.5 | NPT1 1/2、NPT2 | G1 1/2、G2 | 37-44 | 31-38 | 1.8/2.5 | 0.6/1.2 | 48 | 15 | 65 | 75 |
| FRB.BDM-I.13 | M63*1.5 | NPT2、NPT2 1/2 | G2、G2 1/2 | 40-50 | 33-43 | 1.8/2.5 | 0.6/1.2 | 53 | 15 | 80 | 92 |
| FRB.BDM-I.14 | M63*1.5 | NPT2、NPT2 1/2 | G2、G2 1/2 | 43-55 | 36-47 | 1.8/2.5 | 0.6/1.2 | 53 | 15 | 80 | 92 |
| FRB.BDM-I.15 | M75*1.5 | NPT2 1/2、NPT3 | G2 1/2、G3 | 50-63 | 42-53 | 1.8/2.5 | 1.0/1.5 | 58 | 16 | 96 | 111 |
| FRB.BDM-I.16 | M75*1.5 | NPT2 1/2、NPT3 | G2 1/2、G3 | 54-68 | 35-58 | 1.8/2.5 | 1.0/1.5 | 58 | 16 | 96 | 111 |
| FRB.BDM-I.17 | M87*1.5 | NPT3、NPT3 1/2 | G3、G3 1/2 | 62-72 | 52-62 | 1.8/2.5 | 1.0/1.5 | 64 | 18 | 114 | 134 |
| FRB.BDM-I.18 | M87*1.5 | NPT3、NPT3 1/2 | G3、G3 1/2 | 67-79 | 56-67 | 1.8/2.5 | 1.0/1.5 | 64 | 18 | 114 | 134 |
| FRB.BDM-I.19 | M100*1.5 | NPT4 | G4 | 78-89 | 65-75 | 1.8/2.5 | 1.0/1.5 | 70 | 18 | 128 | 148 |
| FRB.BDM-I.20 | M100*1.5 | NPT4 | G4 | 88-104.5 | 74-91 | 1.8/2.5 | 1.0/1.5 | 70 | 18 | 128 | 148 |
