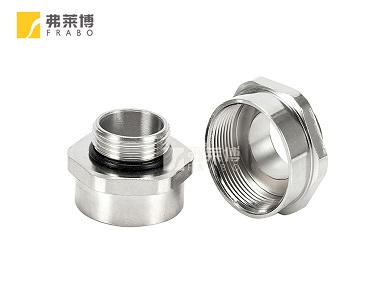

产品名称：扩径接头
产品材质：合金、黄铜镀镍、304不锈钢、316不锈钢
| 规格型号 Spec. | 螺纹外径 Outside Thread | 螺纹内径 Inside Thread | 内丝长度 Outside Thread Length | 外丝长度 Inside Thread Length | 扳手尺寸 Wrencn |
| FRB.KJ.M12-M16 | M12×1.5 | M16×1.5 | 5 | 10 | 18 |
| FRB.KJ.M16-M20 | M16×1.5 | M20×1.5 | 6 | 12 | 22 |
| FRB.KJ.M20-M25 | M20×1.5 | M25×1.5 | 8 | 13 | 27 |
| FRB.KJ.M25-M32 | M25×1.5 | M32×1.5 | 7.5 | 15 | 35 |
| FRB.KJ.M32-M40 | M32×1.5 | M40×1.5 | 10 | 15 | 45 |
| FRB.KJ.M40-M50 | M40×1.5 | M50×1.5 | 10 | 16 | 55 |
| FRB.KJ.M50-M63 | M50×1.5 | M63×1.5 | 9 | 16 | 65 |
| PG螺纹 | |||||
| FRB.KJ.PG7-PG9 | PG7 | PG9 | 5 | 10 | 17 |
| FRB.KJ.PG9-PG11 | PG9 | PG11 | 6.5 | 12 | 20 |
| FRB.KJ.PG11-PG13.5 | PG11 | PG13.5 | 6 | 12 | 22 |
| FRB.KJ.PG13.5-PG16 | PG13.5 | PG16 | 6.5 | 13 | 24 |
| FRB.KJ.PG16-PG21 | PG16 | PG21 | 6.5 | 14 | 30 |
| FRB.KJ.PG21-PG29 | PG21 | PG29 | 8 | 15 | 40 |
| FRB.KJ.PG29-PG36 | PG29 | PG36 | 8 | 17 | 50 |
| FRB.KJ.PG36-PG42 | PG36 | PG42 | 9 | 16 | 57 |
| FRB.KJ.PG42-PG48 | PG42 | PG48 | 9 | 16 | 65 |
| 可自由定制其他螺纹 | |||||
